The MVS 620 VacSmart™ Double Chamber Vacuum Sealer
with Advanced HACCP Features

MVS 620 VacSmart Double Chamber Vacuum Sealer with Advanced HACCP Features

MVS 620 VacSmart™

The Vacsmart edition takes the MVS series to another level. It features dual pressure sensors for unparalleled vacuum precision, preset keys for quick operation, vacuum pulsing for flash marination, liquid boil-over protection, 24+ food groups with storage for 1000+ products, electronic logging of SOPs & CCPs, direct temperature recording of sous vide cooking cycles, label printing, and a HACCP Plan.

Model Number: MV620FBT

List Price USD: $ 20,095

Features

  • Two seal bars at 24.5"

  • Flat deck for easy cleaning

  • Lid Height 9.5"

  • Dual convex seal

  • Front handle

  • Seal bar air assist ready

  • Leveling legs + wheels for mobility

  • Inert gas ready

  • Ethernet, USB, and Thermocouple connectivity

  • TruVac™ sensors for hold + vacuum pulse infusion

Software

  • 6 speed keys

  • 999+ product look-ups

  • Selectable vacuum display in mbar or %

  • HACCP Plan included at www.HACCP-Portal.com

  • Fragile food protection with gentle air return

Advanced HACCP Features

  • E-data reporting with PDF file download:

    • Operator, product, date/time, batch number

    • County of origin, supplier information, pH level, temperature

    • Immediate corrective action entry at vacuum machine

  • Sanitation alerts:

    • Food type change (i.e. beef - fish - beef)

    • 4-hour operation sanitation prompt

    • Air dry sanitation instructions

  • Programmable label printer (optional):

    • Product name, packed date and use by date

    • Ingredients, product handling message, operator name

    • Sequential number, address, barcode, etc.

Accessories

  • Direct thermal label printer (203 dpi)

  • Water-resistant flexible keyboard

  • K-Type needle temperature probe

Technical Specifications

  • Linux embedded operating system

  • 5" LCD touch screen display, resistive type

  • ARM Cortex A7 quad-core processor

  • 1GB LPDDR2 RAM memory

  • 8GB microSD storage

  • WiFi & Bluetooth connectivity

  • 10/100 Mbps Ethernet port

  • Two USB 2.0 ports

  • Two thermocouple ports

Power

  • 100 m3/h Busch® vacuum pump

  • 220-240 volts, 3-phase

  • 23 amps

Ship Weight & Dimensions

  • 38" x 62" x 52"H

  • 830lbs

Optional Features

Label Printer

  • Order number: ST200009

  • MSRP (USD): 569

Case Label (12 rolls)

  • Order number: ST200060

  • MSRP (USD): call for info

Inert Gas Kit (4 per bar)

  • Order number: HM903062

  • MSRP (USD): 1,604

Seal Bar Air Assist

  • Order number: KR456DVL

  • MSRP (USD): 978

220V/1ph/22A/63m3h

  • Order number: MV6200FB-1P

  • MSRP (USD): 1,600

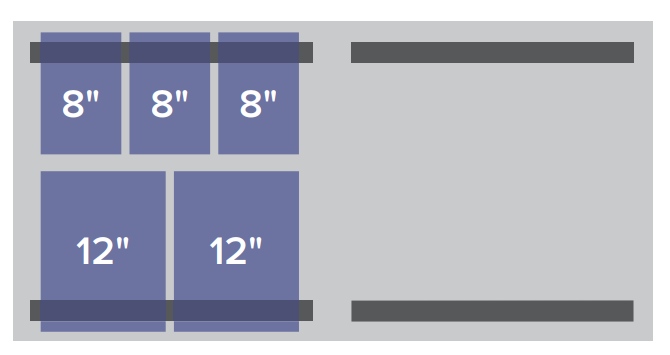

MVS620FBVacSmart Seal Bar
MVS 620 VacSmart Front Back Sealbars

As continued product improvement is a policy of minipack,
specifications are subject to change without notice.
